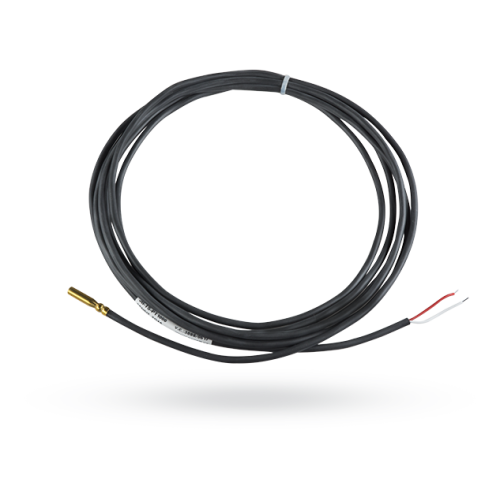

JB-TS-PT1000 Universal temperature sensor type PT1000
- Brand::Jablotron
- Product Code: JB-TS-PT1000
- Availability: In Stock
| Measuring range | 50 �C to +200 �C |
|---|---|
| Ambient relative humidity | 10 % - 100 % |
| Atmospheric pressure | 70 to 106 k PA |
| Housing diameter | 4.6 � 0.1 mm |
| Housing length | 24 mm |
| Electrical strength | 500 VAC according to EN 60730-1 |
| Insulation resistance | > 200 M? at 500 VDC, 25� � 3�C |
| Type and length of the supply cable | Silicone, unshielded, 2 x 0.22 mm2; 3m |
| Ingress protection class of the sensor | IP 68 (h 1m according to EN 60 529) |
Temperature sensor with a cable for the temperature measurement of gaseous, liquid and solid substances in the range of -50 °C to +200 °C.
It can be used as an external temperature sensor for the products:
JB-EXT-TH-R
JB-EXT-TH-B
