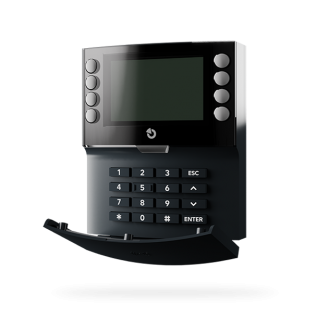

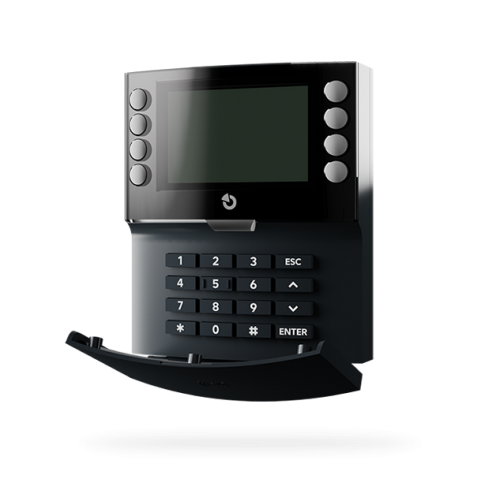

JA-155E-NFC-AN Wireless four-segment keypad with display and NFC reader - anthracite
- Brand::Jablotron
- Product Code: JA-155E-NFC-AN
- Availability: In Stock
| Control device type | B |
|---|---|
| Power | Note: Batteries are not included |
| Typical battery life | 1�2 years |
| Low battery detection | <4.5 V |
| Nominal current | 290 ?A |
| Maximum current | 95 mA |
Overview
The JA-155E-NFC-AN represents the basic user interface in the Jablotron 100+ and Mercury portfolios. Its robust four-segment wireless design simplifies installation.
Key features
- Four fixed segments with clear colour status indication.
- Secure 13.56 MHz NFC MIFARE authorisation.
- Internal menu for events, users and peripherals.
- Battery or external 12V power supply.
- Digital input for a wired magnetic detector.
- Compatible with JA-102K, JA-103K, JA-107K and JA-152KRY.
Documentation
English installation manual available under Downloads.
