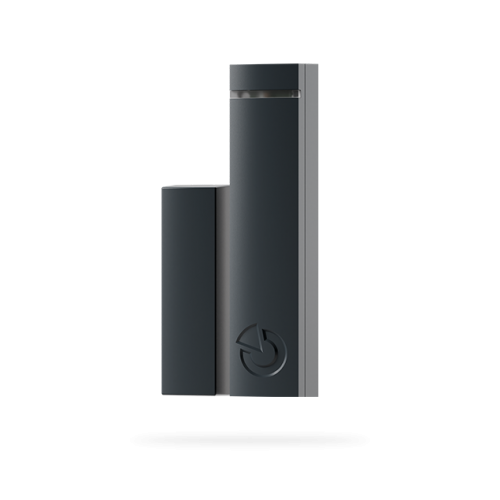

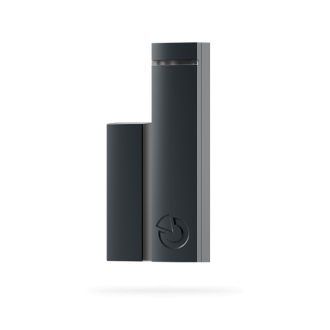

JA-153M-AN Wireless magnetic detector with recognition of external magnetic fields - anthracite
- Brand::Jablotron
- Product Code: JA-153M-AN
- Availability: In Stock
| Power | Please note: Battery is not included. |
|---|---|
| Typical lifetime of battery | about 2 years (max. 10 activation daily) |
| LowBatt state | <0.95 V |
| Quiescent current | 50 A consumption |
| Maximum current | 30 mA consumption |
| Communication frequency | 868.1 MHz, JABLOTRON protocol |
| Maximum radio-frequency | <25 mW power (ERP) |
| Communication range | approx. 500 m (unrestricted area) |
| Dimensions transmitter part | 20 x 86 x 20 mm |
| Dimensions magnet part | 16 x 55 x 15 mm |
| Weight (without battery) | 25 g |
| Classification | Security grade 3/Environmental class II (EN 50131-1) |
| Operational environment | Indoor general |
| Operating temperature | -10 �C to +40 C range |
| Average operating humidity | 75% RH, without condensation |
| Certification body | Trezor Test s.r.o. (no. 3025) |
Overview
The JA-153M-AN is a wireless magnetic detector for monitoring the opening of doors, windows and similar access points. It supports selectable pulse or status reactions and is intended for trained installation with the Jablotron 100 system. This anthracite detector is compatible with JA-103K and JA-107K control panels.
Available from Pacific GSM on pacificgsm.com as a genuine Jablotron 100 / 100+ product.
Key features
- Wireless magnetic detection with recognition of external magnetic fields
- Selectable pulse or status reaction
- Official Jablotron part code JA-153M-AN
Ideal for
Homes and small commercial sites
Choose the JA-153M-AN for reliable perimeter monitoring and straightforward integration with Jablotron 100 panels and peripherals stocked by Pacific GSM.
Documentation
The English installation manual is available under Downloads on this product page when supplied by Jablotron.
Tags: JA-153M-AN Wireless magnetic detector with recognition of external magnetic fields - anthracite, JA-153M-AN, Detectors
