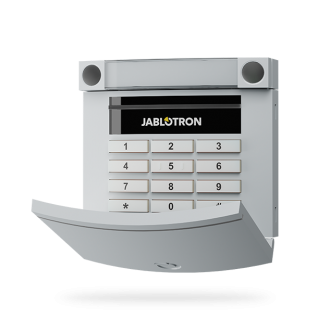

JA-153E-GR Wirelss access module with RFID and keypad Grey
- Brand::Jablotron
- Product Code: JA-153E-GR
- Availability: In Stock
| Power | 2 x AA alkaline batteries 1.5 V |
|---|---|
| Typical battery life | 1 year |
| Frequency | bidirectional Jablotron protocol 868 MHz |
| Communication range | 200 meters |
| Dimensions | 102 � 76 � 33 mm |
| Security Level | grade 2, EN 50131-1, EN 50131-3, EN 50131-6 |
| Environment according to EN 50131-1, EN 50131-3 | II indoor general |
| Temperature | -10 to 40 � C |
The JA-153E-GR is a two-way wireless keypad module with RFID reader Its modular architecture enables users to create a combination whose size of installation perfectly meets their needs, to operate a security system,access control, or PG output. Contains one operating segment and, if needed, can be equipped with up to 20 JA-192E control segments
The unit allows simple system control using interlocking segments.
It features Smart Radio Wake-up (SRW) which reacts to, for example, a wireless door detector being triggered and effects the automatic termination of sleep mode in a set system during the entrance delay.
The module is powered by alkaline batteries. The module can be powered from an external 12V DC power supply via the DE 06-12 power supply. If the mains power is cut off, the module will work from the batteries.
The module has an input terminal for external door detector connection
The module is addressable and occupies one alarm system position.
