JA-150N Wireless power output module PG

<table class="table"><tbody>

<tr><td>Power</td><td>230 V AC / 50 Hz</td></tr>

<tr><td>Communication band</td><td>868.1 MHz, JABLOTRON protocol</td></tr>

<tr><td>Maximum radiofrequency power (ERP)</td><td><25 mW</td></tr>

<tr><td>Maximal current consumption</td><td>30 mA</td></tr>

<tr><td>Relay max voltage</td><td>250 V AC / 24 V DC</td></tr>

<tr><td>Resistive load</td><td>max. 16 A</td></tr>

<tr><td>Dimensions</td><td>82 x 51 x 19 mm</td></tr>

<tr><td>Weight</td><td>46 g</td></tr>

<tr><td>Operating temperature range</td><td>-10 �C to +40 �C</td></tr>

<tr><td>Environment</td><td>indoor general</td></tr>

</tbody></table>

The JA-150N is a wireless PG power output module (10 A/230 V AC). It copies the state of a selected PG output in the JA-100 system (PG1 to PG 32).

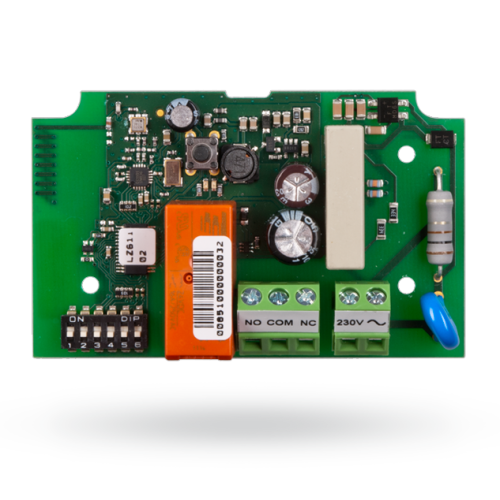

A particular PG output is addressed on the PCB board by using 5 DIP switches. This module does not occupy any postion in the JA-100 system.
