JA-120N Bus module for control of an electric lock
- Brand::Jablotron
- Product Code: JA-120N
- Availability: In Stock
| Power | 3x NiMh rechargable accumulator type AA Eneloop 1900 mAh |
|---|---|
| External power | +12 V |
| Current consumption in standby mode | 10 mA |
| Current consumption for cable choice | 60 mA |
| Pulse (1s) | 600 mA |
| Continuous | 300 mA |
| Dimensions | 90 x 90 x 35 mm |
| Weight | 185 g |
| Operationa temperature range | -10 �C - +40 C |
| Classification | Grade 2 according to EN 50131-1, EN 50131-3, |
| Operational environment according to EN | II. General indoor 50131-1 |
| Also complies with | EN 50130-4, EN 55022 |
Overview

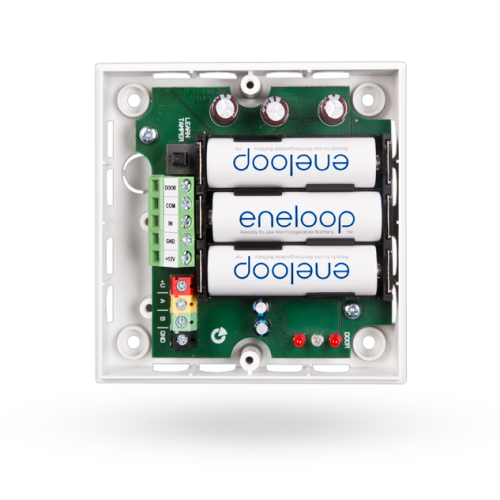

The JA-120N module is designed for the power supply and control of electric locks and release systems from the system bus. It is fitted with batteries that ensure the initial current impulse required to open el. locks.
Available from Pacific GSM on pacificgsm.com as a genuine Jablotron 100 / 100+ product.
Key features
- Designed for the Jablotron 100 / 100+ bus or wireless ecosystem
- Official Jablotron part code JA-120N
Ideal for
Homes and small commercial sites
Choose the JA-120N when you need reliable Jablotron 100 coverage and straightforward integration with panels and peripherals stocked by Pacific GSM.
Documentation
The English installation manual is available under Downloads on this product page when supplied by Jablotron.
