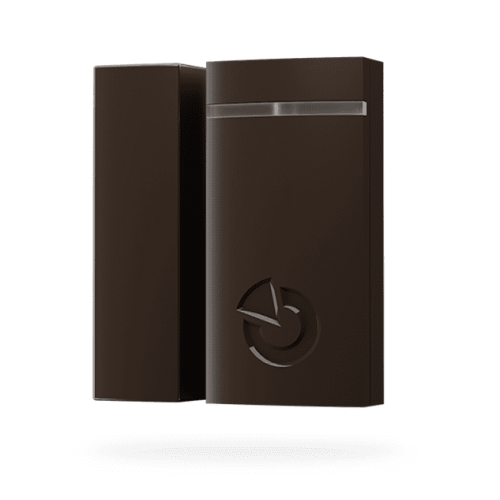

Mini bus magnetic detector - brown
- Brand::Jablotron
- Product Code: JA-111MB
- Availability: In Stock
| Power | from control panel bus 12 V (9�15 V) |
| Current consumption in standby mode | 5 mA |
| Current consumption for cable choice | 5 mA |
| Dimensions | 27 x 55 x 16 mm (detector), 16 � 55 � 16 mm (magnet) |
| Classification | Grade 2 |
| according to | EN 50131-1, EN 50131-2-6 |
| Operational environment according to | EN 50131-1 II. Indoor general |
| Operating temperature range | -10 to +40 �C |
| Also complies with | EN 50130-4, EN 55022 |
Overview
The JA-111MB is a bus mini magnetic door/window contact (brown) for the Jablotron 100 / 100+ system, available from Pacific GSM for New Zealand projects.
The JA-111MB is designed for the detection of windows or door opening. It has a unique small design suitable for residential or commercial installations.
It is powered from the Jablotron 100 bus.
Key features
- The module communicates via the digital bus.
- It is addressable and occupies one position in the alarm.
Ideal for
Brown-finish installations where a compact magnetic contact is preferred (Detectors, Perimeter protection).
Installation notes
Install only by a trained technician with a valid Jablotron certificate. See the English installation manual in Downloads for wiring, enrolment, and mounting details.
