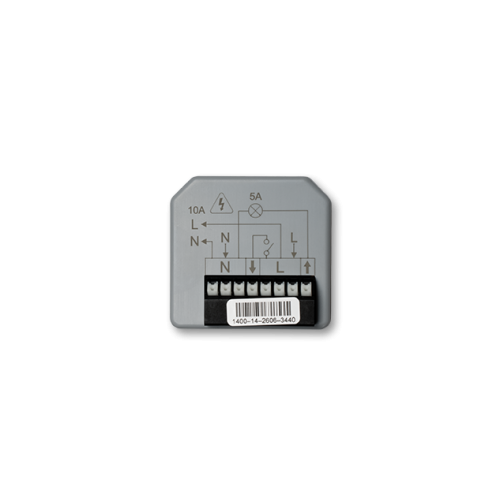

JB-161HN Wireless lighting switch
- Brand::Jablotron
- Product Code: JB-161HN
- Availability: In Stock
| Available colours | Grey � basic technical |
| Communication with the system | Wireless, bidirectional, synchronous |
| System compatibility | JA-103K, JA-107K, JA-108K control panels |
| Dimensions | 42.9 x 41 x 12.3 mm (18.6 mm including terminal block) |
| Main power supply | 230 V AC mains |
| Nominal consumption | Up to 0.2 W (standby power) |
| Peak consumption | Up to 0.6 W (with relay active) |
| Number of logic inputs | 1x input against L 230 V AC |
| Output load capacity | 1x 5 A / 230 V AC; 1150 W resistive load, AC-1; 300 W incandescent and LED lighting AC-5b |
| Wire cross-section | 1.5 mm2 solid wire |
| Recommended accessories | JB-160J |
| IP rating | IP20 |
| Installation environment | Class II � Indoor general |
| Temperature resistance | -10 to +50 �C |
Overview
JB-161HN Wireless lighting switch. Turn standard lighting into smart lighting by connecting it to a JABLOTRON alarm. Buy from Pacific GSM in NZ.
Tags: JB-161HN Wireless lighting switch, JB-161HN, Detectors
