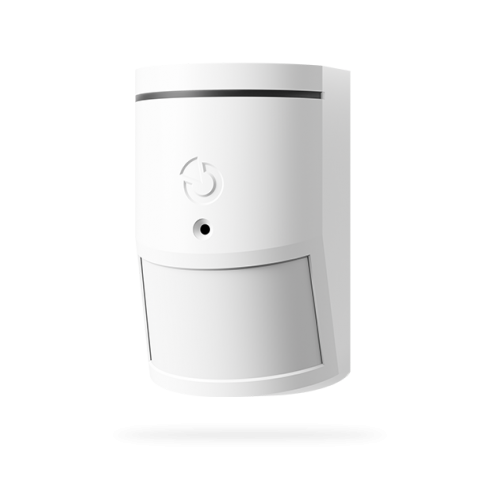

JA-161PB Wireless motion and glass-break detector
- Product Code: JA-161PB
- Availability: In Stock
| Power | 2x alkaline battery type LR6 (AA) 1.5 V / 2.45 Ah Please note: Batteries are not included. |
| Typical lifetime of batteries | approx. 2 years |
| Low battery voltage | <2.4 V |
| Quiescent current consumption | 53 ?A |
| Maximal current consumption | 50 mA |
| Communication band | 868.1 MHz, JABLOTRON protocol |
| Maximum radio-frequency power (ERP) | <25 mW |
| Recommended installation height | 2.2�2.5 m |
| Detection angle / detection coverage (PIR) | 110 � / 12 m |
| Detection angle / detection coverage (GBS) | 90 � / 9 m |
| RF range | 500 m (open area) |
| GBS detection type | acoustic |
| Dimensions | 60 x 98 x 52 mm |
| Weight (w/o batteries) | 91 g |
| Classification | Security grade 2 / Environmental class II (according to EN 50131-1) |
| Environment | indoor general |
| Operating temperature range | -10 �C to +40 �C |
| Average operating humidity | 75% RH, non-condensation |
| Certification body | Trezor Test (no. 3025) |
| Complies with | EN IEC 63000, EN 50130-4, EN 55032, EN IEC 62368-1, ETSI EN 300 220-1, -2, EN 50131-1, EN 50131-2-2, EN 50131-5-3, EN 50131-2-7-1, EN 50131-6 |
| Can be operated according to | ERC/REC 70-03 |
| Recommended screw | 2x � 3.5 x 40 mm (countersunk head) |
Overview
The motion detector with an integrated glass break (GB) detector combines two detection functions in a single housing. Available through Pacific GSM for New Zealand Jablotron 100+ projects.
The standard PIR detector reacts to movement by evaluating changes in the temperature image of the room.
The built-in GB detector reacts to pressure changes and high acoustic frequencies typical of glass breakage.
Key features
- This model replaces the original JA-180PB detector.
- The mechanical design is unified with the standard motion detectors of the Jablotron 100+ series.
- The detector function is identical to the design version JA-162PB.
Ideal for / Compatibility
Suited to Jablotron 100+ installations needing a wireless combined motion and glass-break detector (Detectors, Combined and dual).
It works with control panels JA-103K, JA-107K or newer.
Installation notes
When learned into the system, the detector occupies the positions of two peripherals, each configurable separately.
The glass pane should be at least 60 – 60 cm in size and must be within 9 m of the detector.
The sensitivity of the GB detection can be adjusted directly using the F-Link software.
