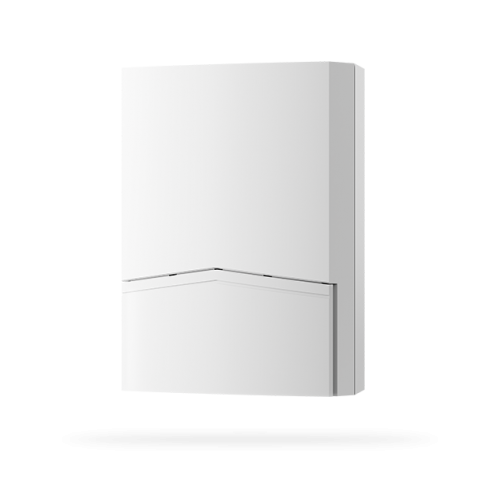

JA-154A Wireless battery indoor siren
- Brand::Jablotron
- Product Code: JA-154A
- Availability: In Stock
| Power | Batteries are not included in the packaging. |
|---|---|
| Typical lifetime of batteries | approx. 2 years |
| LowBatt state | <3,3 V |
| Quiescent current consumption | 135 �A |
| Maximum current consumption | 250 mA |
| Current consumption during | 250 mA acoustic indication |
| Communication frequency | 868.1 MHz, JABLOTRON protocol |
| Maximum radio-frequency power | <25 mW (ERP) |
| Maximal acoustic output | 85�88 dB |
| Type of warning device | type W |
| Dimensions | 100 x 67 x 40 mm |
| Weight (without batteries) | 97 g |
| Classification | Security grade 2/Environmental class II (EN 50131-1) |
| Environment | Indoor general |
| Operating temperature range | -10 �C do +40 �C |
| Average operating humidity | 75% RH, without condensation |
| Certification body | Trezor Test (no. 3025) |
| In compliance with | EN 50131-1, EN 50131-5-3, EN 50131-4, EN 50131-6 |
| Recommended screw | 3x o 3,5 x 40 mm (flat head) |
Overview
The JA-154A – the wireless siren can be easily mounted anywhere within range of the system radio. Flexible installation is made possible by power from 3 AA batteries.
Available from Pacific GSM on pacificgsm.com as a genuine Jablotron 100 / 100+ product.
Key features
- Designed for the Jablotron 100 / 100+ bus or wireless ecosystem
- Official Jablotron part code JA-154A
Ideal for
Homes and small commercial sites
Choose the JA-154A when you need reliable Jablotron 100 coverage and straightforward integration with panels and peripherals stocked by Pacific GSM.
Documentation
The English installation manual is available under Downloads on this product page when supplied by Jablotron.
Tags: JA-154A Wireless battery indoor siren, JA-154A, Sirens
