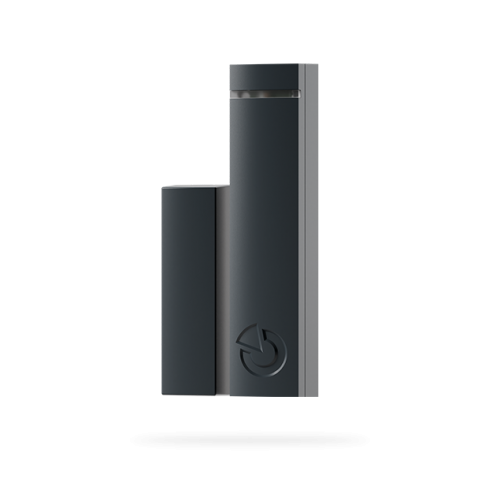

JA-113M-AN Bus magnetic detector with recognition of external magnetic fields - anthracite
- Brand::Jablotron
- Product Code: JA-113M-AN
- Availability: In Stock
| Power | from control panel digital bus 12 V DC (915 V) |
|---|---|
| Low power supply voltage fault | <8,8 V |
| Quiescent current consumption | 2.5 mA |
| Maximal current consumption | 12.5 mA |
| Dimensions transmitter part | 20 x 86 x 20 mm |
| Dimensions magnet part | 16 x 55 x 15 mm |
| Weight | 18 g |
| Classification | security grade 3 / environmental class II (EN 50131-1) |
| Operational environment | Indoor general |
| Operating temperature range | -10 �C to +40 �C |
| Averate operational humidity | 75 % RH, non-condensation |
| Certification body | Trezor Test s.r.o. (no. 3025), Kiwa Nederland b. v. |
| In compliance with | T 031, EN 50131-1, -2-6, EN 50130-4, EN 55032, EN IEC 63000 |
| Recommended screw | 2x � 3.5 x 40 mm (flat head) |
Overview
The JA-113M-AN – the product is a component of the Jablotron security system. It is used for the detection of opening doors, windows, etc. The device has a selectable reaction (pulse or state). It should be installed by a trained technician with a valid certificate issued by an authorized distributor.
Available from Pacific GSM on pacificgsm.com as a genuine Jablotron 100 / 100+ product.
Key features
- Designed for the Jablotron 100 / 100+ bus or wireless ecosystem
- Official Jablotron part code JA-113M-AN
Ideal for
Homes and small commercial sites
Choose the JA-113M-AN when you need reliable Jablotron 100 coverage and straightforward integration with panels and peripherals stocked by Pacific GSM.
Documentation
The English installation manual is available under Downloads on this product page when supplied by Jablotron.
