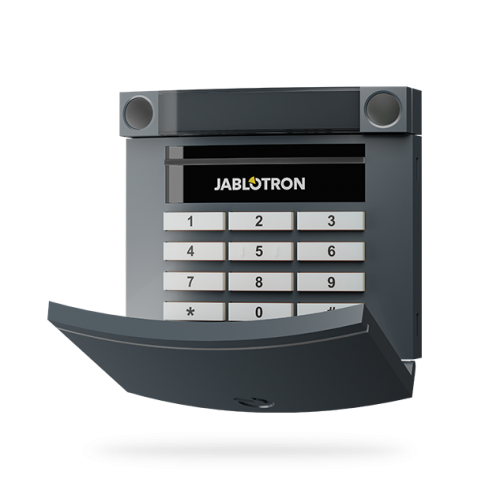

JA-113E-AN Anthracite Bus Access Module with keypad and RFID
- Brand::Jablotron
- Product Code: JA-113E-AN
- Availability: In Stock
| Power | control panel bus (9 ... 15 V) |
|---|---|
| Current consumption in standby (quiescent) | 10 mA |
| Current consumption for choice of cable | 15 mA |
| Current for each segment | 0.5 mA |
| RFID frequency | 125 kHz |
| Operating temperature range | -10 to +40 � C |
| Environment | EN 50131-1. general indoor |
| Classification | grade 2 according to EN 50131-1, EN 50131-3 |
| Complies with | ETSI EN 300330, EN 50130-4, EN 55022, EN 60950-1 |
| Can be operated to | ERC REC 70-03 |
The A-113E-AN is an access control module with a keypad and an RFID card reader to control a system. Contains one operating segment and, if needed, can be equipped with up to 20 JA-192E control segments
Allows the simple control of a security system or automation using segments. Communicates via and is powered by the bus.
The module has a power saving function.
The module is addressable and occupies one position in the alarm system.
