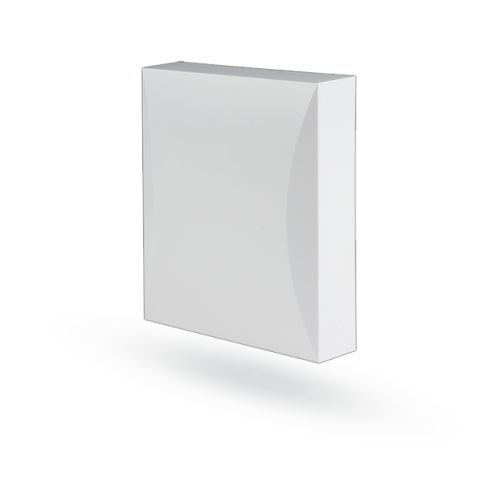

JB-EXT-TH-B BUS Outdoor thermometer
- Brand::Jablotron
- Product Code: JB-EXT-TH-B
- Availability: In Stock
| Operating temperature | -25 �C to +60 �C |
|---|---|
| Operating humidity | 0 % - 100 % |
| Power Supply | from the bus, 12 V (8 � 36V) |
| Internal sensor temperature measurement range accuracy | �0.6 �C |
| External sensor temperature measurement range accuracy | �1 �C |
| Dimensions | 90 x 110 x 35 mm |
| Measured temperature range for the internal temperature sensor | -25 �C to +60 �C |
| Measured temperature range for the external temperature sensor | -50 �C to +200 �C |
| Ingress protection class | IP 53 |
The JB-EXT-TH-B thermometer is designed for control panels of the JABLOTRON 100 system. It measures the temperature and sending measure data to control panel and then to cloud.
External temperature probe sensor (JB-TS-PT1000) can be connected to measure temperature in liquids, air or closed containers.
Measured data is transferred to cloud where is possible set high and low temperature limits with SMS or email notification.
