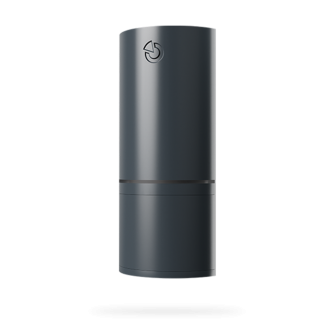

JA-122PW-AN Bus dual PIR and MW motion detector - anthracite
- Brand::Jablotron
- Product Code: JA-122PW-AN
- Availability: In Stock
| Power supply | from the control panel bus 12 V DC (9 ... 15 V) |
|---|---|
| - in standby mode | 5 mA |
| - for cable choice | 16 mA |
| Recommended installation height | 2.2 � 2.5 m above floor level |
| Detection angle/PIR coverage | 90�/12 m |
| Detection angle/MW coverage | 80/12 m |
| MW Frequency | 24.125 GHz |
| Maximum MW radio-frequency power (ERP) | 30 mW |
| Dimensions | 150 x 63 x 40 mm |
| Weight | 120 g |
| Classification | 1) |
| Environment | Indoor general |
| Operating temperature range | -10 C to +40 �C |
| Average operational humidity | 75 % RH, w/o condensation |
| Certification body | Trezor Test s.r.o. (no. 3025) |
| In compliance with | 50581, EN 50131-1, EN 50131-2-4 |
Overview
The JA-122PW-AN – this product is a bus device of the Jablotron 100+ system. It is built to detect human body movement inside buildings. A high immunity to false alarms is reached thanks to the combination of PIR and microwave (MW) detection. The detector works like a classic PIR detector, however, when the PIR detects movement in a guarded area, the MW part is activated and confirms the previous PIR activation.
Available from Pacific GSM on pacificgsm.com as a genuine Jablotron 100 / 100+ product.
Key features
- Designed for the Jablotron 100 / 100+ bus or wireless ecosystem
- Official Jablotron part code JA-122PW-AN
Ideal for
Homes and small commercial sites
Choose the JA-122PW-AN when you need reliable Jablotron 100 coverage and straightforward integration with panels and peripherals stocked by Pacific GSM.
Documentation
The English installation manual is available under Downloads on this product page when supplied by Jablotron.
