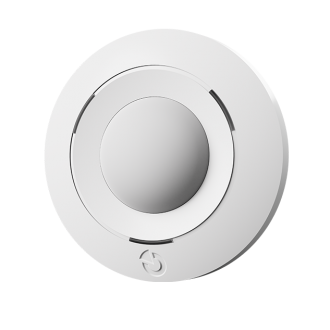

JA-115P Bus ceiling PIR motion detector
- Brand::Jablotron
- Product Code: JA-115P
- Availability: In Stock
| Power | from the control panel BUS 12 V DC (9 ... 15 V) |
|---|---|
| Nominal consumption to calculate backup | 2.8 mA time |
| Maximum consumption for cable selection | 30 mA |
| Recommended installation height | 2.5 � 3.5 m above ground level |
| Detection coverage | 360 �/11 m (installation height � 3.5 m) |
| Dimensions | O 125 x 40 mm |
| Weight | 120 g |
| Classification | 1) |
| Operational environment | indoor general |
| Operational temperature range | -10 �C to +40 �C |
| Average operational humidity | 75 % RH, non-condensing |
| Certification body | Trezor Test s.r.o. (no. 3025) |
Overview
The JA-115P – the product is a bus system device for the Jablotron 100+. It is built to detect human body motion inside buildings. Compared to standard motion detectors from the Jablotron 100+ series, this detector is designed for ceiling installation.
Available from Pacific GSM on pacificgsm.com as a genuine Jablotron 100 / 100+ product.
Key features
- The resistance to false alarms is adjustable at two levels
- The detector has a pulse response and occupies one position in the system.
- For automation functions, the detection sensitivity can be increased in the triggered system status.
Ideal for
Homes and small commercial sites
Choose the JA-115P when you need reliable Jablotron 100 coverage and straightforward integration with panels and peripherals stocked by Pacific GSM.
Documentation
The English installation manual is available under Downloads on this product page when supplied by Jablotron.
